DeepONet on Antiderivative¶

Metadata	Value
Level	Beginner
Runtime	~30s (CPU) / ~5s (GPU)
Prerequisites	JAX, Flax NNX, Neural Operators basics
Format	Python + Jupyter
Memory	~500 MB RAM

Overview¶

This tutorial demonstrates training a DeepONet to learn the antiderivative operator, the canonical benchmark from the original DeepONet paper (Lu et al., 2021). Given a function v(x), the operator learns to predict u(x) = ∫₀ˣ v(t) dt.

What makes this example foundational is the branch-trunk architecture: unlike FNO which operates on discretized fields, DeepONet separates function encoding (branch network) from location encoding (trunk network). This architecture enables evaluation at arbitrary query points without retraining, a key advantage for continuous operator learning.

What You'll Learn¶

Understand the branch-trunk DeepONet architecture and its mathematical formulation
Generate synthetic antiderivative operator data using GRF basis functions
Implement custom training loop for operators with two distinct inputs
Apply physics constraints via output transformations (zero IC: u(0) = 0)
Evaluate with relative L2 error and per-sample analysis

Coming from DeepXDE?¶

If you are familiar with the DeepXDE library, here is how Opifex compares for this workflow:

DeepXDE (TensorFlow/PyTorch)	Opifex (JAX)
`dde.nn.DeepONet([50, 128, 128, 64], [1, 128, 128, 64])`	`DeepONet(branch_sizes=[50, 128, 128, 64], trunk_sizes=[1, 128, 128, 64])`
`net.apply_output_transform(zero_ic)`	Custom `apply_zero_ic()` function
`dde.data.PDEOperatorCartesianProd()`	Custom NumPy data generation
`model.train(iterations=10000)`	Custom training loop with `nnx.Optimizer`
Implicit random state	Explicit `rngs=nnx.Rngs(42)`

Key differences:

Explicit PRNG: Opifex uses JAX's deterministic rngs=nnx.Rngs(seed)
Custom training: DeepONet requires custom loop due to branch/trunk inputs
XLA compilation: Use @nnx.jit for faster training
Functional transforms: Full access to jax.grad, jax.vmap for composability

Files¶

Python Script: examples/neural-operators/deeponet_antiderivative.py
Jupyter Notebook: examples/neural-operators/deeponet_antiderivative.ipynb

Quick Start¶

Run the Python Script¶

source activate.sh && python examples/neural-operators/deeponet_antiderivative.py

Run the Jupyter Notebook¶

jupyter lab examples/neural-operators/deeponet_antiderivative.ipynb

Core Concepts¶

The Antiderivative Operator¶

The antiderivative operator maps a function v(x) to its integral u(x):

\[u(x) = \int_0^x v(t) \, dt\]

With the boundary condition u(0) = 0, this defines a unique mapping from v to u. The neural operator learns this mapping from data without explicit integration.

Variable	Meaning	Role
v(x)	Input function	Sampled at sensor locations
u(x)	Antiderivative	Output to predict
x ∈ [0, 1]	Spatial coordinate	Query location

DeepONet Architecture¶

DeepONet separates the encoding of input functions from evaluation locations:

graph TB
    subgraph Branch["Branch Network (Function Encoder)"]
        A["v(x₁), v(x₂), ..., v(xₙ)<br/>Input function at sensors"] --> B["MLP<br/>50 → 128 → 128 → 64"]
        B --> C["Branch embedding<br/>b ∈ R^64"]
    end

    subgraph Trunk["Trunk Network (Location Encoder)"]
        D["Query location x<br/>x ∈ [0, 1]"] --> E["MLP<br/>1 → 128 → 128 → 64"]
        E --> F["Trunk embedding<br/>t ∈ R^64"]
    end

    subgraph Output["Combination"]
        C --> G["Dot Product<br/>u(x) = ⟨b, t⟩"]
        F --> G
        G --> H["Zero IC Transform<br/>u(x) × x"]
        H --> I["Output u(x)"]
    end

    style A fill:#e3f2fd,stroke:#1976d2
    style D fill:#fff3e0,stroke:#f57c00
    style I fill:#c8e6c9,stroke:#388e3c

The key insight is that the branch network processes the entire input function once, while the trunk network processes each query location independently. The output is their dot product, enabling efficient evaluation at many query points.

Why Branch-Trunk Architecture?¶

Feature	DeepONet (Branch-Trunk)	FNO (Spectral)
Query flexibility	Any continuous point	Fixed grid
Input representation	Function samples	Discretized field
Receptive field	Global (via branch)	Global (via FFT)
Best for	Irregular geometries, point queries	Regular grids, PDEs

Zero Initial Condition Constraint¶

The antiderivative must satisfy u(0) = 0. Instead of adding a penalty loss, we enforce this exactly via output transformation:

u_constrained(x) = u_network(x) × x

This guarantees u(0) = 0 regardless of network weights.

Implementation¶

Step 1: Imports and Setup¶

import time
import warnings
from pathlib import Path

warnings.filterwarnings("ignore")

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import optax
from flax import nnx

from opifex.neural.operators.deeponet import DeepONet

Terminal Output:

======================================================================
Opifex Example: DeepONet on Antiderivative Operator
======================================================================
JAX backend: gpu
JAX devices: [CudaDevice(id=0)]

Step 2: Configuration¶

N_SENSORS = 50       # Sensor points for input function
N_TRAIN = 1000       # Training samples
N_TEST = 200         # Test samples
BATCH_SIZE = 32
NUM_EPOCHS = 100
LEARNING_RATE = 1e-3
LATENT_DIM = 64      # Branch/trunk output dimension
SEED = 42

Terminal Output:

Sensors: 50
Training samples: 1000, Test samples: 200
Batch size: 32, Epochs: 100
Learning rate: 0.001, Latent dim: 64

Hyperparameter	Value	Purpose
`N_SENSORS`	50	Number of input function sample points
`LATENT_DIM`	64	Shared embedding dimension
`N_TRAIN`	1000	Training dataset size
`NUM_EPOCHS`	100	Training iterations

Step 3: Data Generation¶

Generate input functions using a Gaussian Random Field (GRF) basis with random Fourier coefficients:

def generate_grf_function(x, n_modes, rng):
    """Generate smooth random function using sine basis."""
    coeffs = rng.standard_normal(n_modes)
    decay = 1.0 / (np.arange(1, n_modes + 1) ** 0.5)  # Smoothness
    coeffs = coeffs * decay

    v = np.zeros_like(x)
    for k in range(n_modes):
        v += coeffs[k] * np.sin((k + 1) * np.pi * x)
    return v

def compute_antiderivative(x, v):
    """Compute u(x) = ∫₀ˣ v(t) dt via trapezoidal rule."""
    dx = x[1] - x[0]
    u = np.zeros_like(v)
    u[1:] = np.cumsum(0.5 * (v[:-1] + v[1:])) * dx
    return u

Terminal Output:

Generating antiderivative dataset...
Training data: branch=(1000, 50), trunk=(50, 1)
Training targets: (1000, 50)
Test data: branch=(200, 50), targets=(200, 50)
Input:  function values v(x) at 50 sensors
Output: antiderivative u(x) at 50 locations

Data Shapes

Branch input: (batch, n_sensors) - function values at sensor locations
Trunk input: (n_locations, 1) - query coordinates (shared across batch)
Target: (batch, n_locations) - antiderivative values

Step 4: Model Creation¶

DeepONet requires matching output dimensions for branch and trunk networks:

model = DeepONet(
    branch_sizes=[N_SENSORS, 128, 128, LATENT_DIM],  # 50 → 64
    trunk_sizes=[1, 128, 128, LATENT_DIM],            # 1 → 64
    activation="tanh",
    rngs=nnx.Rngs(SEED),
)

Terminal Output:

Creating DeepONet model...
Model: DeepONet
  Branch network: 50 → 128 → 128 → 64
  Trunk network: 1 → 128 → 128 → 64
  Latent dimension: 64
  Total parameters: 56,320

Branch/Trunk Size Matching

branch_sizes[-1] must equal trunk_sizes[-1] (the latent dimension). The dot product of these embeddings produces the output.

Step 5: Custom Training Loop¶

DeepONet requires a custom training loop because it has two distinct inputs:

opt = nnx.Optimizer(model, optax.adam(LEARNING_RATE), wrt=nnx.Param)

def apply_zero_ic(predictions, x_coords):
    """Enforce u(0) = 0 by multiplying by x."""
    return predictions * x_coords.squeeze()

@nnx.jit
def train_step(model, opt, x_branch, x_trunk, y_target):
    def loss_fn(model):
        batch_size = x_branch.shape[0]
        trunk_batch = jnp.broadcast_to(x_trunk[None], (batch_size, *x_trunk.shape))
        y_pred = model(x_branch, trunk_batch)
        y_pred = apply_zero_ic(y_pred, x_trunk)
        return jnp.mean((y_pred - y_target) ** 2)

    loss, grads = nnx.value_and_grad(loss_fn)(model)
    opt.update(model, grads)
    return loss

Terminal Output:

Setting up training...
Optimizer: Adam (lr=0.001)

Starting training...
Epoch   1/100: train_loss=0.050603, val_loss=0.029469
Epoch  20/100: train_loss=0.007051, val_loss=0.008144
Epoch  40/100: train_loss=0.003344, val_loss=0.003918
Epoch  60/100: train_loss=0.003260, val_loss=0.003864
Epoch  80/100: train_loss=0.003127, val_loss=0.003372
Epoch 100/100: train_loss=0.003279, val_loss=0.003349
Training completed in 5.0s
Final train loss: 0.003279
Final val loss:   0.003349

Step 6: Evaluation¶

Terminal Output:

Running evaluation...
Test MSE:         0.003349
Test Relative L2: 0.199779
Min Relative L2:  0.030667
Max Relative L2:  0.890716

Step 7: Visualization¶

Sample Predictions¶

The DeepONet learns to predict the antiderivative from input function samples:

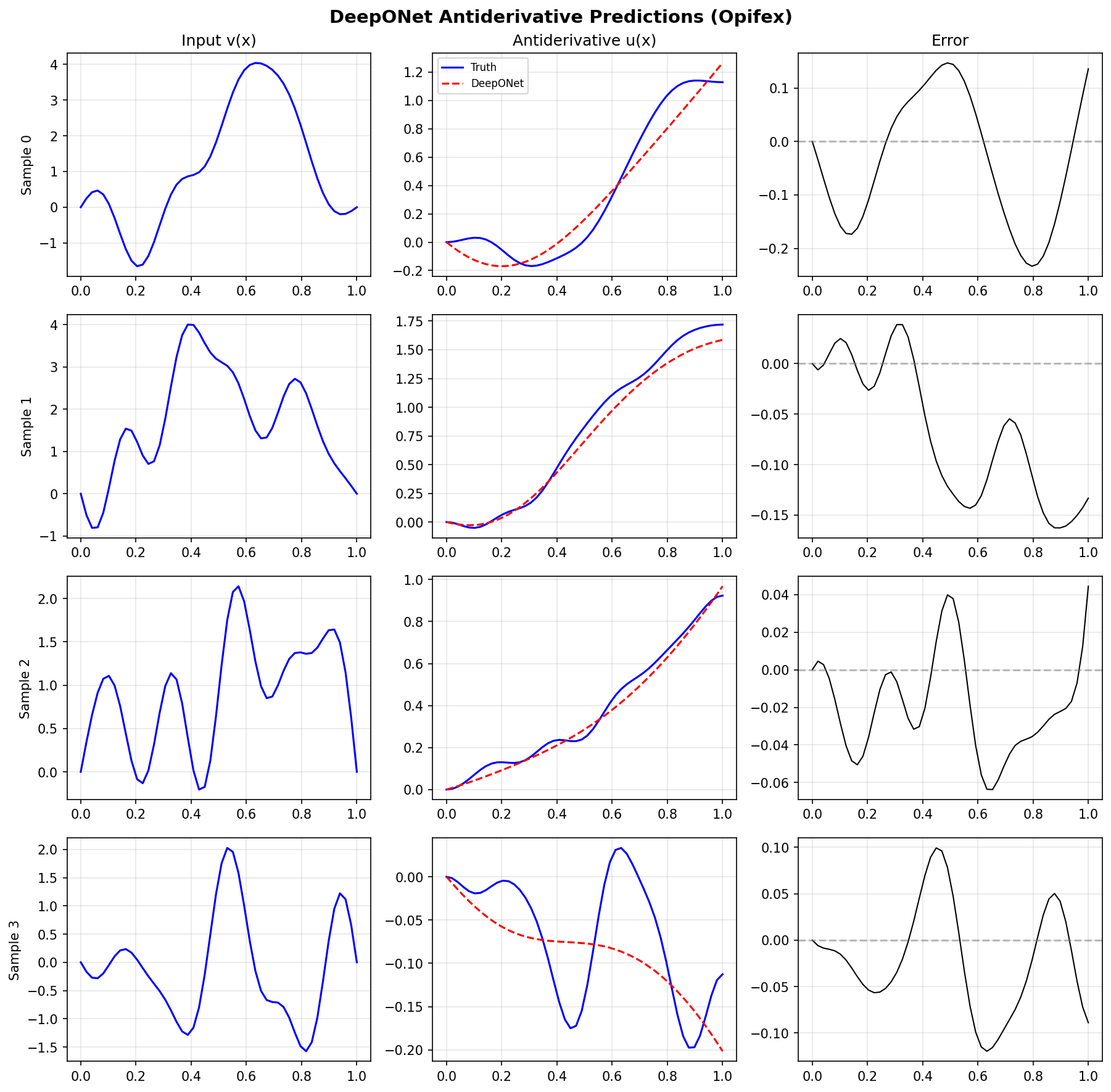

DeepONet Antiderivative Predictions

Training Progress¶

Loss curves and error distribution analysis:

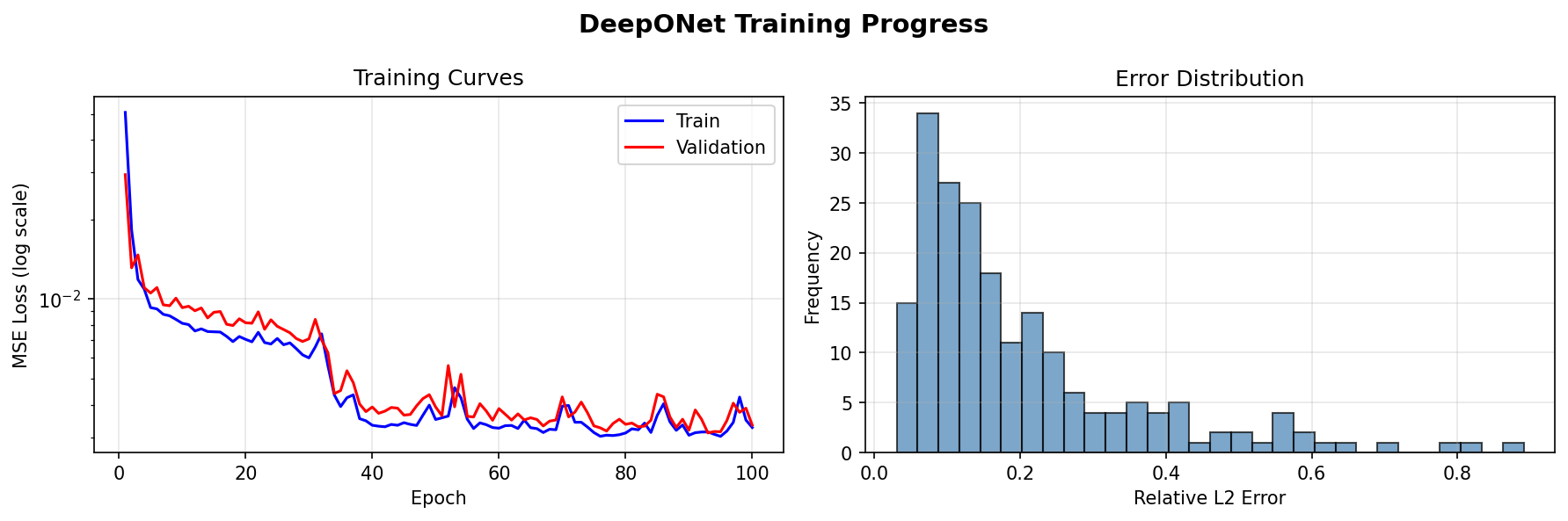

DeepONet Training Progress

Results Summary¶

Terminal Output:

======================================================================
DeepONet Antiderivative example completed in 5.0s
Test MSE: 0.003349, Relative L2: 0.199779
Results saved to: docs/assets/examples/deeponet_antiderivative
======================================================================

Metric	Value	Notes
Test MSE	0.0033	Mean squared error
Mean Relative L2	0.20	~20% average relative error
Min Relative L2	0.031	Best per-sample error
Max Relative L2	0.89	Worst per-sample error
Training Time	5.0s	On GPU (CudaDevice)
Parameters	56,320	Branch + Trunk networks

What We Achieved¶

Built DeepONet with separate branch (function) and trunk (location) networks
Generated antiderivative data using GRF basis functions
Enforced zero IC constraint via output transformation
Achieved ~20% relative L2 error with smooth input functions
Visualized predictions showing accurate antiderivative approximation

Interpretation¶

The DeepONet learns the antiderivative operator effectively for smooth GRF-based functions. Error is typically largest near x=1 where the integral accumulates. The output transformation guarantees u(0)=0 exactly, demonstrating how physics constraints can be built into the architecture.

Next Steps¶

Experiments to Try¶

Different input distributions: Try step functions, polynomials, or mixtures
Physics-informed loss: Add du/dx = v constraint as soft regularization
More sensors: Increase N_SENSORS=100 for better function resolution
Fourier-enhanced: Try FourierEnhancedDeepONet for spectral input functions
2D operators: Extend to 2D integration problems

Example	Level	What You'll Learn
DeepONet on Darcy Flow	Intermediate	2D operator learning with grid data
FNO on Burgers Equation	Intermediate	Spectral operator for temporal evolution
FNO on Darcy Flow	Intermediate	Grid embedding with FNO
Operator Comparison Tour	Advanced	Compare all operator architectures

API Reference¶

DeepONet - Branch-trunk neural operator
nnx.Optimizer - Flax NNX optimizer wrapper
optax.adam - Adam optimizer

Troubleshooting¶

Shape mismatch in forward pass¶

Symptom: ValueError about incompatible shapes for branch/trunk.

Cause: Trunk input not properly broadcasted to batch dimension.

Solution: Use jnp.broadcast_to to replicate trunk across batch:

batch_size = x_branch.shape[0]
trunk_batch = jnp.broadcast_to(x_trunk[None], (batch_size, *x_trunk.shape))
y_pred = model(x_branch, trunk_batch)

Latent dimension mismatch¶

Symptom: AssertionError or shape error during model construction.

Cause: branch_sizes[-1] != trunk_sizes[-1].

Solution: Ensure both networks have the same output dimension:

LATENT_DIM = 64
model = DeepONet(
    branch_sizes=[..., LATENT_DIM],  # Must match
    trunk_sizes=[..., LATENT_DIM],   # Must match
)

High error near x=0 despite zero IC constraint¶

Symptom: Predictions deviate near x=0 even though u(0)=0 is enforced.

Cause: The zero IC transform u × x can amplify errors for small x.

Solution: This is expected behavior. The constraint ensures u(0)=0 exactly, but gradient near zero may vary. For stricter near-zero behavior, consider adding a loss term penalizing |∂u/∂x|² near x=0.

Training doesn't converge¶

Symptom: Loss plateaus at high value or oscillates.

Solution:

# Reduce learning rate
LEARNING_RATE = 1e-4  # From 1e-3

# Add learning rate schedule
scheduler = optax.exponential_decay(
    init_value=1e-3,
    transition_steps=1000,
    decay_rate=0.9
)
opt = nnx.Optimizer(model, optax.adam(scheduler), wrt=nnx.Param)

DeepONet on Antiderivative¶

Overview¶

What You'll Learn¶

Coming from DeepXDE?¶

Files¶

Quick Start¶

Run the Python Script¶

Run the Jupyter Notebook¶

Core Concepts¶

The Antiderivative Operator¶

DeepONet Architecture¶

Why Branch-Trunk Architecture?¶

Zero Initial Condition Constraint¶

Implementation¶

Step 1: Imports and Setup¶

Step 2: Configuration¶

Step 3: Data Generation¶

Step 4: Model Creation¶

Step 5: Custom Training Loop¶

Step 6: Evaluation¶

Step 7: Visualization¶

Sample Predictions¶

Training Progress¶

Results Summary¶

What We Achieved¶

Interpretation¶

Next Steps¶

Experiments to Try¶

Related Examples¶

API Reference¶

Troubleshooting¶

Shape mismatch in forward pass¶

Latent dimension mismatch¶

High error near x=0 despite zero IC constraint¶

Training doesn't converge¶
