Field Operations: Differential Operators and Fluid Simulation¶

Source: examples/fields/field_operations.py | field_operations.ipynb

Overview¶

Opifex provides JAX-native field abstractions for scientific computing on structured grids, inspired by PhiFlow. Fields are immutable JAX pytrees that carry physical domain metadata and support JIT compilation, automatic differentiation, and vectorization.

Differential Operators¶

Differential operators

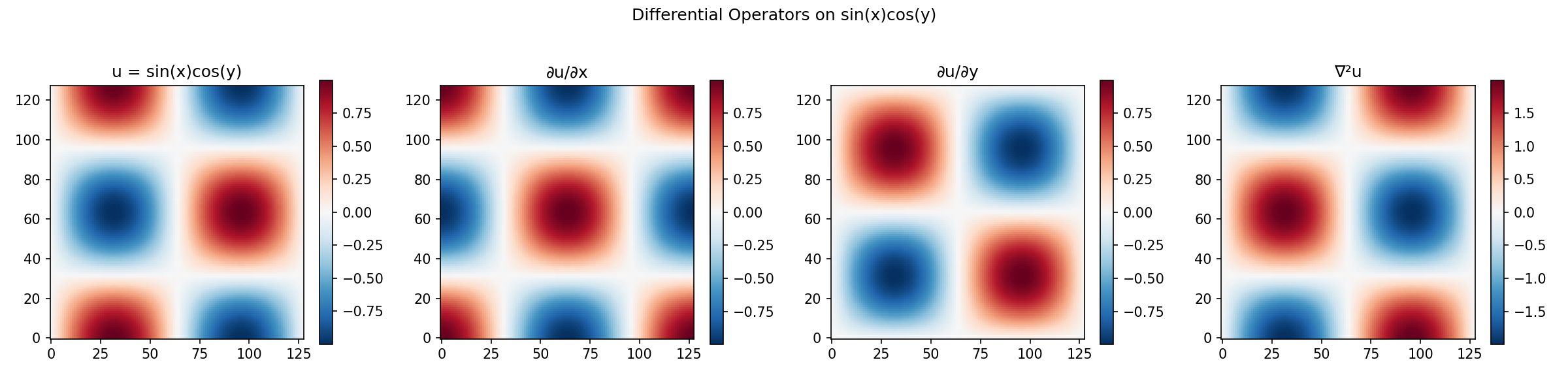

Gradient, partial derivatives, and Laplacian of \(u(x,y) = \sin(x)\cos(y)\) on a \(128 \times 128\) periodic grid with \([0, 2\pi]^2\) domain.

Gradient x-component max error: 0.000402
Laplacian max error: 0.000550

Second-order central finite differences achieve sub-0.1% error at this resolution.

Semi-Lagrangian Advection¶

Advection

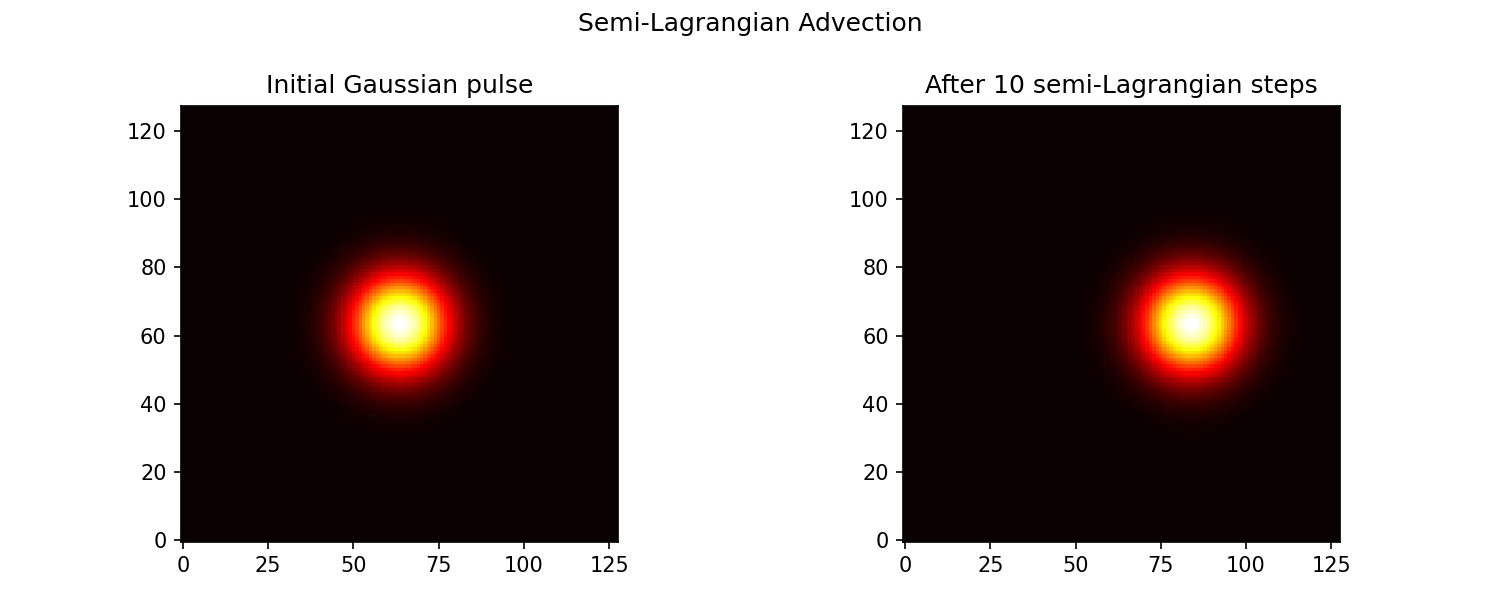

A Gaussian pulse advected by uniform velocity using the semi-Lagrangian method (backward trace + bilinear interpolation). 10 steps at \(dt = 0.1\).

Peak before advection: 0.9976
Peak after advection:  0.9970

Minimal numerical diffusion — peak preserved to within 0.06%.

Pressure Projection (Helmholtz-Hodge)¶

Pressure projection

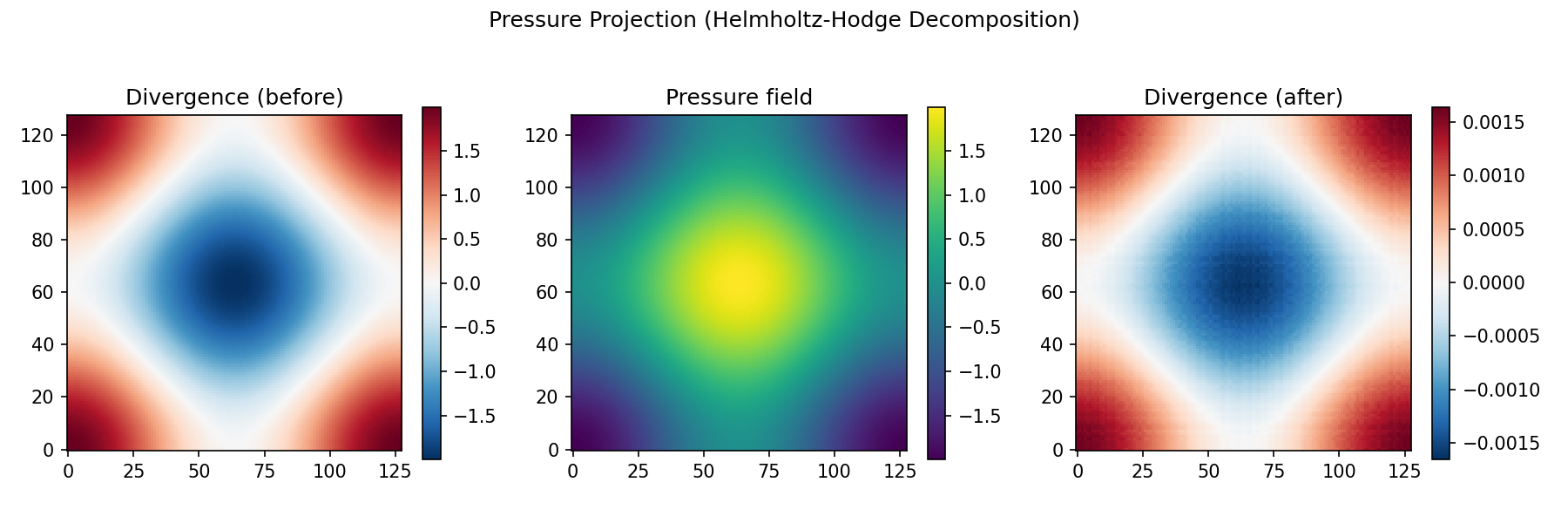

A divergent velocity field \(v = (\sin x, \sin y)\) is projected onto the divergence-free subspace using the spectral (FFT) pressure solver.

Divergence before projection: max=1.9986
Divergence after projection:  max=0.0017

Divergence reduced by 1000x, producing a nearly incompressible velocity field.

API Reference¶

Function	Input	Output	Method
`gradient(u)`	Scalar grid	Vector grid	Central FD, \(O(h^2)\)
`laplacian(u)`	Scalar grid	Scalar grid	Central FD, \(O(h^2)\)
`divergence(v)`	Vector grid	Scalar grid	Central FD, \(O(h^2)\)
`curl_2d(v)`	2D vector grid	Scalar grid	Central FD, \(O(h^2)\)
`semi_lagrangian(f, v, dt)`	Scalar + velocity	Scalar	Backward trace + bilinear interp
`maccormack(f, v, dt)`	Scalar + velocity	Scalar	SL + error correction
`pressure_solve_spectral(v)`	Vector (periodic)	Vector + pressure	FFT Poisson solver
`pressure_solve_jacobi(v)`	Vector (any BC)	Vector + pressure	Iterative Jacobi

Comparison with PhiFlow¶

Opifex's field module is inspired by PhiFlow but implemented in pure JAX:

Feature	Opifex	PhiFlow
Backend	JAX only	JAX, PyTorch, TensorFlow
Pytree	`@register_pytree_node_class`	`phiml.PhiTreeNode`
Grid types	`CenteredGrid`	`Field` (unified)
Staggered grids	Planned	Dual dimensions
JIT support	Native	Via `phiml` backend
Dependency	None (pure JAX)	`phiml` + `phi`

References¶

Holl et al. "PhiFlow: A Differentiable PDE Solving Framework"
Stam (1999) "Stable Fluids"
Chorin (1968) "Numerical Solution of the Navier-Stokes Equations"
