FBPINN: Finite Basis PINN on Damped Harmonic Oscillator

Filename Note

The filename fbpinn-poisson is a historical artifact. This example solves a damped harmonic oscillator ODE, not the Poisson equation.

Metadata	Value
Level	Intermediate
Runtime	~2 min (GPU) / ~10 min (CPU)
Prerequisites	JAX, Flax NNX, ODEs
Format	Python + Jupyter
Memory	~300 MB RAM

Overview

This example demonstrates solving the damped harmonic oscillator ODE using FBPINN (Finite Basis Physics-Informed Neural Network). FBPINNs decompose the domain into overlapping subdomains, with each subdomain having its own neural network. Smooth window functions create a partition of unity that blends the subdomain solutions.

This is the canonical FBPINN benchmark problem from Moseley et al. (2023). The hard boundary constraint approach ensures the initial conditions are exactly satisfied.

What You'll Learn

1. Understand the FBPINN architecture with overlapping subdomains
2. Implement hard boundary constraints via output transforms
3. Configure window functions for partition of unity blending
4. Subclass Opifex's FBPINN to add custom constraints
5. Visualize window weights and subdomain contributions

Coming from FBPINNs (PyTorch)?

FBPINNs (PyTorch)	Opifex (JAX)
problems.HarmonicOscillator1DHardBC	Subclass FBPINN with hard BC in __call__
constants.SUBDOMAIN_XS	Subdomain(id=i, bounds=jnp.array([[t_lo, t_hi]]))
WindowFunctions.COS_WINDOW	FBPINNConfig(window_type="cosine")
fbpinn.train()	Custom training loop with nnx.Optimizer

Key differences:

1. Subclassing: Hard constraints implemented by subclassing FBPINN
2. Explicit subdomains: Define subdomain bounds explicitly
3. JIT compilation: Training loop is JIT-compiled for GPU efficiency

Files

• Python Script: examples/domain-decomposition/fbpinn_poisson.py
• Jupyter Notebook: examples/domain-decomposition/fbpinn_poisson.ipynb

Quick Start

Run the Python Script

source activate.sh && python examples/domain-decomposition/fbpinn_poisson.py

Run the Jupyter Notebook

jupyter lab examples/domain-decomposition/fbpinn_poisson.ipynb

Core Concepts

FBPINN Architecture

FBPINNs use a partition of unity approach:

\[u(x) = \sum_i w_i(x) \cdot u_i(x) / \sum_j w_j(x)\]

where \(w_i(x)\) are smooth window functions and \(u_i(x)\) are subdomain networks.

Component	This Example
Domain	\(t \in [0, 1]\)
Subdomains	4 overlapping regions
Window	Cosine (smooth, compact support)
ODE	\(u'' + \mu u' + k u = 0\)
Hard BC	\(u = 1 + \tanh^2(t/\sigma) \cdot u_{network}\)

Damped Harmonic Oscillator

The ODE describes a damped oscillator with: - Damping coefficient: \(\mu = 4\) - Spring constant: \(k = 400\) - Initial conditions: \(u(0) = 1\), \(u'(0) = 0\)

Implementation

Step 1: Imports and Configuration

import jax
import jax.numpy as jnp
import optax
from flax import nnx

from opifex.neural.pinns.domain_decomposition import (
    FBPINN,
    FBPINNConfig,
    Subdomain,
)

Terminal Output:

======================================================================
Opifex Example: FBPINN on Damped Harmonic Oscillator
======================================================================
JAX backend: gpu
JAX devices: [CudaDevice(id=0)]

Damped harmonic oscillator: u'' + 4.0*u' + 400.0*u = 0
Domain: t in [0.0, 1.0]
Subdomains: 4 (overlapping)
Hard BC: u = 1 + tanh(t/0.1)^2 * u_network
Network per subdomain: [1] + [32, 32] + [1]
Training: 20000 epochs @ lr=0.001

Step 2: Create FBPINN Subclass with Hard Constraint

class HarmonicOscillatorFBPINN(FBPINN):
    """FBPINN subclass with hard boundary constraint."""

    def __init__(self, subdomains, interfaces, hidden_dims, *, sd=0.1, config=None, rngs):
        super().__init__(
            input_dim=1, output_dim=1,
            subdomains=subdomains, interfaces=interfaces,
            hidden_dims=hidden_dims, config=config, rngs=rngs,
        )
        self.sd = sd

    def __call__(self, t):
        """Forward pass with hard BC: u = 1 + tanh(t/sd)^2 * u_network."""
        u_network = super().__call__(t)
        return 1.0 + jnp.tanh(t / self.sd) ** 2 * u_network

Terminal Output:

Creating FBPINN model...
Total FBPINN parameters: 4612
Parameters per subdomain: ~1153

Subdomain bounds:
  Subdomain 0: [-0.050, 0.312]
  Subdomain 1: [0.188, 0.562]
  Subdomain 2: [0.438, 0.812]
  Subdomain 3: [0.688, 1.050]

Step 3: Training

opt = nnx.Optimizer(model, optax.adam(LEARNING_RATE), wrt=nnx.Param)

@nnx.jit
def train_step(model, opt, t_dom):
    def loss_fn(m):
        return pde_loss(m, t_dom)
    loss, grads = nnx.value_and_grad(loss_fn)(model)
    opt.update(model, grads)
    return loss

Terminal Output:

Training FBPINN...
  Epoch     1/20000: loss=1.467470e+05
  Epoch  4000/20000: loss=2.309863e+02
  Epoch  8000/20000: loss=1.389566e+02
  Epoch 12000/20000: loss=1.095311e+02
  Epoch 16000/20000: loss=4.759035e+00
  Epoch 20000/20000: loss=2.047876e+00
Final loss: 2.047876e+00

Step 4: Evaluation

Terminal Output:

Evaluating FBPINN...
Relative L2 error:   6.687945e-03
Maximum point error: 5.153432e-03
Mean point error:    1.909906e-03
Mean PDE residual:   1.081548e+00
u(0) predicted:      1.000000 (exact: 1.0, hard BC)

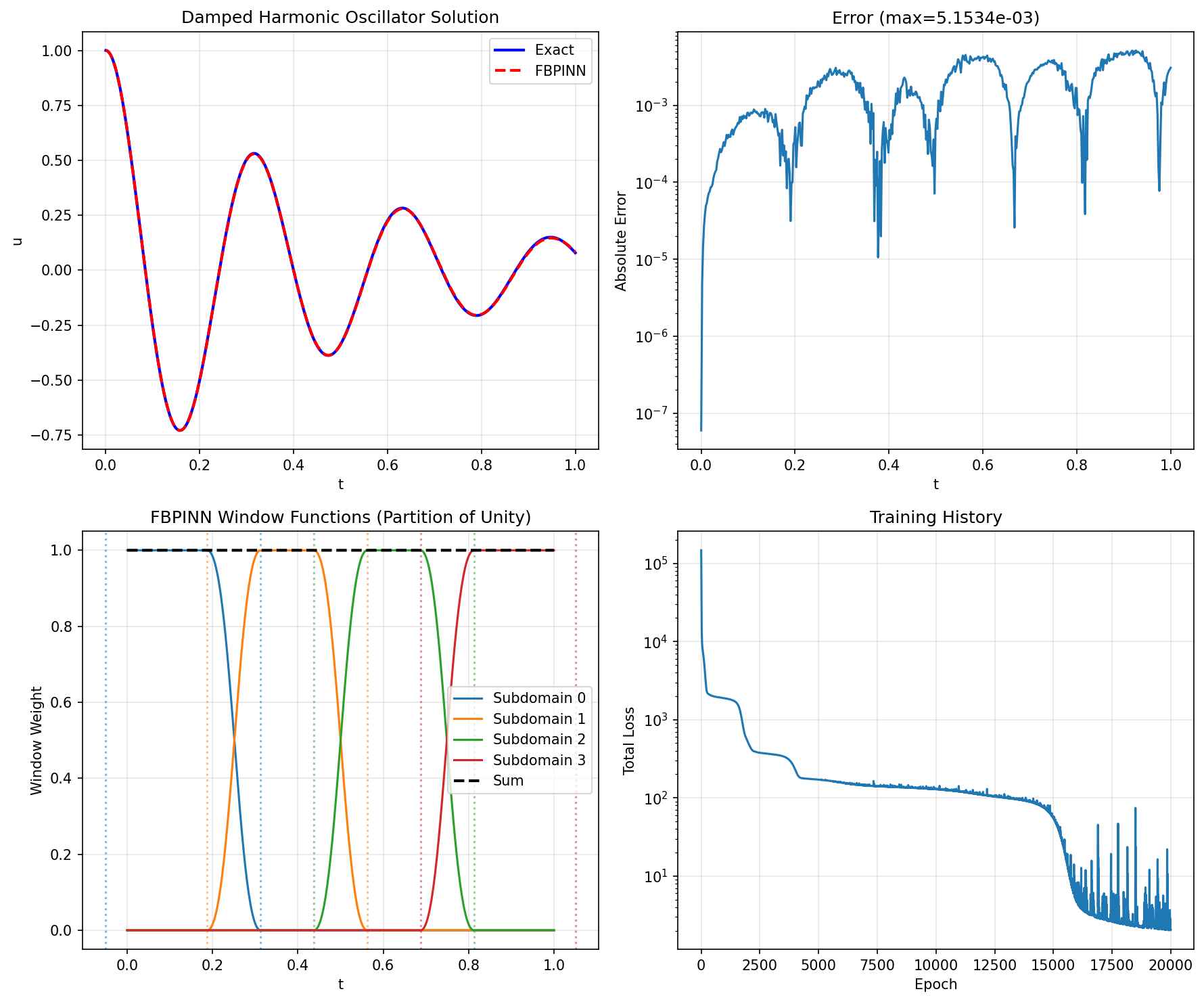

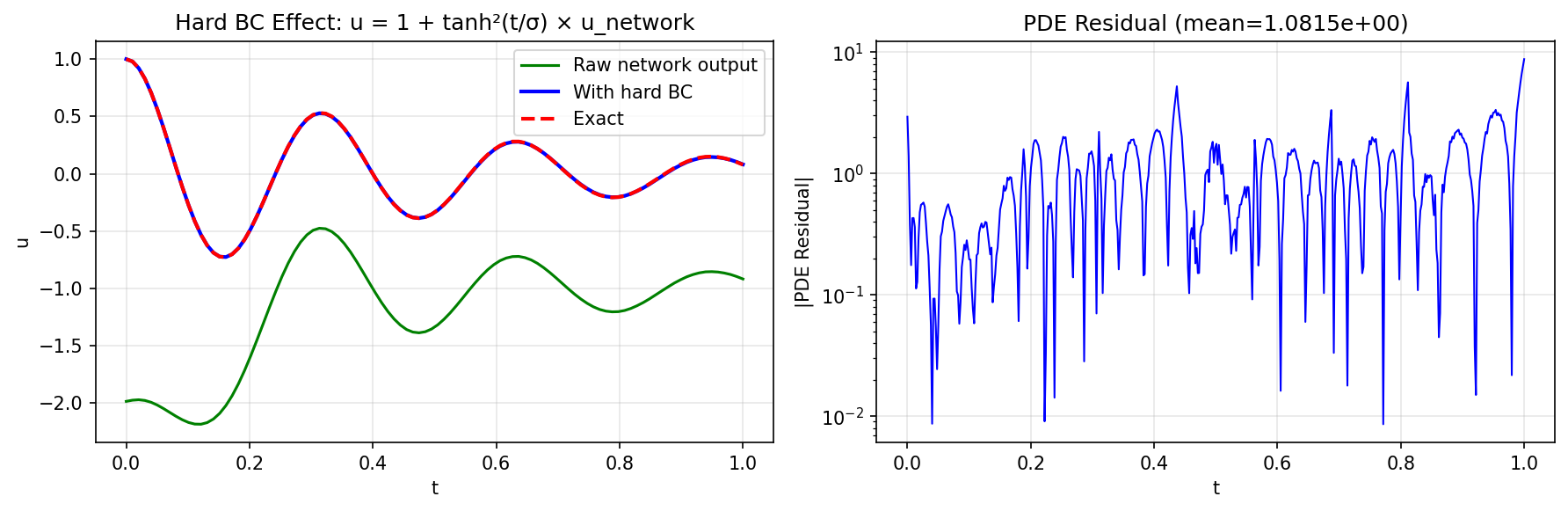

Visualization

Results Summary

Metric	Value
Final Loss	2.05
Relative L2 Error	0.67%
Maximum Error	5.15e-03
Mean PDE Residual	1.08
u(0) (hard BC)	1.000000
Parameters	4,612
Training Epochs	20,000
Window Sum	1.0 (exact)

Next Steps

Experiments to Try

1. More subdomains: Try 8 or 16 subdomains for finer resolution
2. Gaussian windows: Use window_type="gaussian" instead of cosine
3. Higher frequency: Increase \(\omega_0\) for faster oscillations
4. Different ODEs: Apply to heat equation or wave equation

Related Examples

Example	Level	What You'll Learn
XPINN on Burgers	Intermediate	Non-overlapping subdomains
CPINN on Advection	Intermediate	Flux conservation
Heat Equation PINN	Beginner	Single-domain PINN

API Reference

• FBPINN: Base FBPINN class with window functions
• FBPINNConfig: Configuration (window type, normalization)
• Subdomain: Subdomain definition with bounds
• CosineWindow, GaussianWindow: Window function implementations

Troubleshooting

Issue	Solution
Window sum not 1.0	Extend subdomain bounds beyond domain boundary
High loss	Increase epochs or adjust learning rate
Hard BC not exact	Check output transform formula matches IC
Slow training	Reduce number of collocation points
